Measure

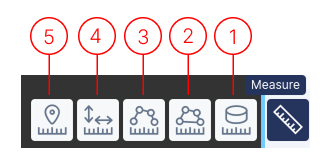

Measurement types for assets:

Note

Measurements aren't saved with the asset. They're only visible while on this page and will be lost upon reload. For persistent measurements, consider creating a Project to store them along with annotations and collaboration details.

1. Volume Measurement​

Calculate the volume of a mesh or point cloud within a specified polygon.

  • Editable in "Edit" mode.

2. Area Measurement​

Calculate the area within a specified polygon.

  • Editable in "Edit" mode.

3. Poly-line Measurement​

Measure composite distance along a line with multiple segments, displaying each segment's length and the total sum.

  • Polyline vertices are editable in "Edit" mode.

4. Distance Measurement​

Measure distance between two points, including vertical/horizontal components and angles from horizontal/vertical at start/end points.

  • Start and end points can be edited in "Edit" mode.

5. Point Measurement​

Extract coordinates (latitude, longitude, elevation, slope angle) of a specific point.

  • Point position editable in "Edit" mode.
